Here is a selection of Mindstorms NXT robots I built:
This project was inspired by the mars rovers Spirit and Opportunity. The robot should have 6 wheels, 4 of them steered.
Sensors should capture the environment and a sensor arm should move out to scan objects.
The robot should receive commands from a operator terminal via Bluetooth.
The detailed report of the Mars Rover project...
Pictures
(more pictures here)
![Mars Rover Mars Rover](MindstormsMarsRover/CompleteModel3_sm.jpg) | "Mars Rover" (virtual model) |
|
![Mars Rover Mars Rover](MindstormsMarsRover/Marsrover_sm.jpg) | "Mars Rover" (real model) |
|
A model of the robot Johnny (number) 5 from the movie "Short Circuit":
- This model is a combination of mockup and functioning model: it should look like the original robot in the movie and, on the other hand, should execute a number of simple tasks.
- It combines Lego technics parts with the traditional lego bricks.
- Finally, I want to discover the limitations of the LabView software development method, the potentials of the NXT approach and the mechanical restrictions of Lego construction.
The detailed report of the Johnny 5 project...
Pictures
(more pictures here)
![Johnny 5 Front/Left Johnny 5 Front/Left](MindstormsJohnny5/Johnny5_frontright_sm.jpg) | "Johnny 5" |
|
![Johnny 5 Left Johnny 5 Left](MindstormsJohnny5/Johnny5_left_sm.jpg) | "Johnny 5" (side view) |
|
My first robot, that was able to walk on two feet:
- The turnable head shifts the center of mass. For each step, the centre of mass is moved over the supporting leg.
- The other leg is moved forward, meanwhile the body is shifted in front of the supporting leg.
- After this, the head is shifted to the other side - a single step is now finished.
Pictures
![Robot Front Robot Front](MindstormsBird/Mindstorms_Bird2_sm.jpg) | Front side (standing) |
|
![Robot Front Robot Front](MindstormsBird/Mindstorms_Bird_sm.jpg) | Front side (step) |
|
![Walking Walking](MindstormsBird/Mindstorms_Bird_Balancing_sm.jpg) | Walking (the walking leg does not touch the ground) |
|

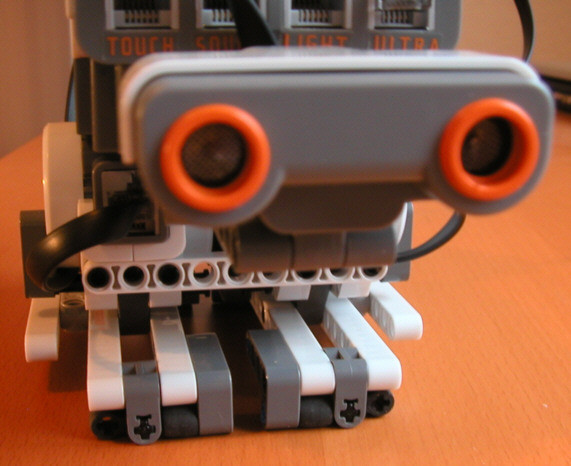

![Eyes Eyes](MindstormsBird/Mindstorms_Bird_Eyes_sm.jpg) | The distance sensor |
|
![Legs Legs](MindstormsBird/Mindstorms_Bird_Leg_sm.jpg) | The leg |
|
![Head Head](MindstormsBird/Mindstorms_Bird_TurningHead_sm.jpg) | The turnable head |
|
My first robot that crawls on legs:
- Two motors control four legs with two skids each. At least three skids have bottom contact.
- The third motor controls the head, this time via worm drive.
- A tactile sensor detects short range obstacles.
Pictures
![Robot Front Robot Front](MindstormsCrab/Mindstorms_Crab_Front2_sm.jpg) | Front side |
|
![Head Head](MindstormsCrab/Mindstorms_Crab_Front3_sm.jpg) | Again, front side |
|
![Legs Legs](MindstormsCrab/Mindstorms_Crab_Legs1_sm.jpg) | The legs |
|
![Legs Legs](MindstormsCrab/Mindstorms_Crab_Legs2_sm.jpg) | Again, the legs |
|
![Tactile Sensor Tactile Sensor](MindstormsCrab/Mindstorms_Crab_Tactile_sm.jpg) | Tactile sensor |
|
![Head Head](MindstormsCrab/Mindstorms_Crab_TurningHead_sm.jpg) | The head |
|
My first Mindstorms robot:
- A turnable ultrasonic distance sensor detects obstacles in driving direction.
It permanently turns between +/- 45 degrees.
- A tactile sensor at the bottom detects small obstacles that are not detected by the ultrasonic sensor.
- A tilt sensor supervises the robot's horizontal position.
Pictures

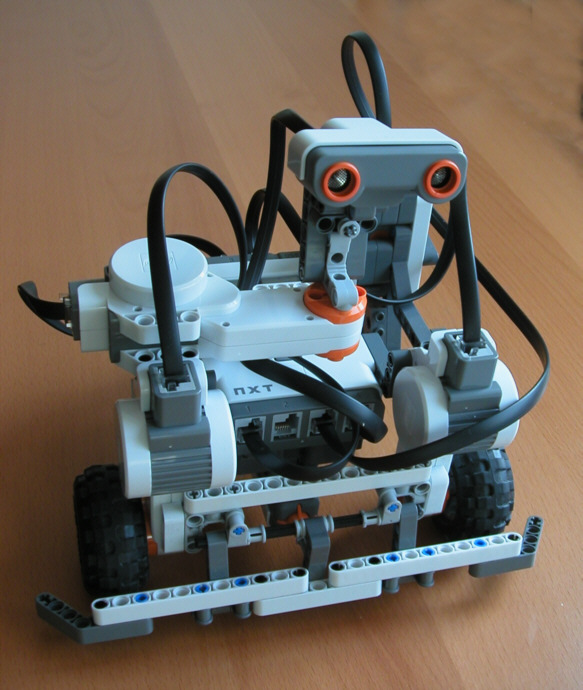

![Robot Front Robot Front](MindstormsRobot1/MindstormsRobot_Front_sm.jpg) | Front side |
|
![Robot Rear Robot Rear](MindstormsRobot1/MindstormsRobot_Back_sm.jpg) | Rear side |
|
![Distance Sensor Distance Sensor](MindstormsRobot1/MindstormsRobot_DistanceSensor_sm.jpg) | Turnable distance sensor |
|
![Tactile Sensor Tactile Sensor](MindstormsRobot1/MindstormsRobot_TactileSensor_sm.jpg) | Tactile sensor |
|
![Tilt Sensor Tilt Sensor](MindstormsRobot1/MindstormsRobot_TiltSensor_sm.jpg) | Tilt sensor |
|
| |
